Highlight:
12V alkaline A23 battery
, 23A cell battery 45mah
, custom 12V alkaline battery
Custom 12V cion cell alkaline battery A23 23A batteries 12Volt battery 45mah
Custom 12V cion cell alkaline battery A23 23A batteries 12Volt battery 45mah button alkaline battery 12V
23A 12 Volt A23 Battery Long Lasting 12 V Batteries 23A 12V L1028 Alkaline Battery cell 23A 12V Alkaline Batteries
A23S battery 12V battery MN21/23 alkaline battery L1028 12V battery A23 12V Battery 23A 12 Volt Battery Alkaline A23 Battery
for Ceiling Fan Remotes Garage Door Openers Batteries 21/23 12V Alkaline Battery 12 Volt Alkaline Battery
small 12V 45mah battery cion alkaline battery pack 12V 23A battery
Battery series: button type alkaline battery pack
Voltage: 12Volt
Capacity: 45mah
Size: 10.3*28.5mm
12V 45mah button cell alakline battery pack A23 battery Technical Specifications
| Parameter |
Specification |
| Nominal Voltage |
12V |
| Typical Capacity |
45 mAh (at 10mA discharge) |
| Dimensions (Dia. × Ht.) |
10.3 mm × 28.5 mm |
| Weight |
~8g |
| Chemistry |
Alkaline (8 cells stacked) |
| IEC Code |
8LR23 / LRV08 |
| Terminal Type |
Flat Top (+) / Spring Base (−) |
| Operating Temp. Range |
-18°C to 55°C (0°F to 130°F) |
| Shelf Life |
5 years (20°C storage) |
| Certifications |
RoHS, IEC 60086 |
IEC:--- : L1028,A23,MN21,MS21,V23GA,LR23A Alkaline-Manganese Dioxide battery
23A 12V Battery suitable for small devices such as car alarms and remote controls.
Alkaline battery 23A 12V dry cell 23A A23 alkaline primary battery 12V 23A Watch Electronic A23 Batteries MN21/23 Alkaline Battery
Long lasting batteries, guaranteed.
Alkaline IEC: 8LR932
Volt: 12.0
Size (mm): 28 X 10
mAh: 58 mah (Conditions: Rated at 20KΩ at (20±2)℃, continuous discharging to the End-point Voltage of 6.0V.)
Warranty period: 12 months
Warning: This batter is not rechargeable, May explode or leak if charged, connected reversly, disposed of in fire.
12volt 23A alkaline battery data sheet:
| Battery type |
Alkaline battery 12V |
| Part number |
23A |
| Material |
Alkaline-Manganese Dioxide (-) Zn︱KOH︱MnO2(+) |
| Voltage |
12 volt |
| Weight |
8g |
| End-point voltage |
6 volt |
| Battery shape |
Cylindrical alkaline battery |
| Dimension |
10.3*28.5mm |
| Package |
In blister card or In box depends on your needed |
| OEM and ODM |
Welcome |

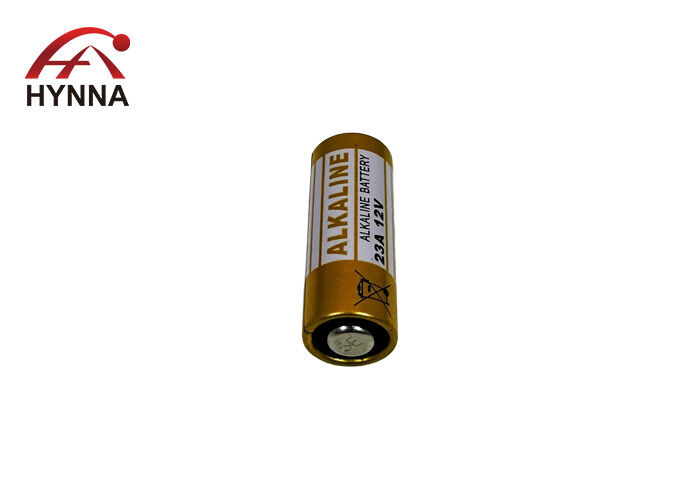

23A alkaline battery A23 12volt battery picture:
12V alkaline battery 23A Discharge performance
| Resistance |
Daily period |
End-point voltage |
Initial |
After 12 months |
| 20kΩ |
24h |
6.0V |
115h |
103.5h |
| 1 kΩ |
24h |
6.0V |
220mins |
175mins |
| 1 kΩ |
1S/4S,24h |
6.0V |
18000Pulses |
17000Pulses |
Hot sale Alkaline batteries from Hynna
Primary alkaline battery cell
| Model |
Diameter mm |
Height mm |
Norminal Voltage V |
Test condition |
Discharge |
| 23A |
9.9-10.2 |
28.1-28.7 |
1.5 |
20KΩ, 24h/d, 7.2V |
98h |
| 27A |
7.65-7.85 |
27.7-28.3 |
1.5 |
20KΩ, 24h/d, 7.2V |
36h |
| LR03/AAA |
9.5-10.5 |
43.3-44.5 |
1.5 |
10Ω, 24h/d, 0.9V |
8h |
| 3.9Ω, 24h/d, 0.9V |
2.5h |
| LR6/AA |
13.5-14.5 |
49.2-50.5 |
1.5 |
10Ω, 24h/d, 0.9V |
19.1h |
| 3.9Ω, 24h/d, 0.9V |
6.4h |
| LR14/C |
24.9-26.2 |
48.6-50.0 |
1.5 |
3.9Ω, 24h/d, 0.8V |
20h |
| 6.8Ω, 1h/d, 0.9V |
39h |
| LR20/D |
32.3-34.2 |
59.5-61.5 |
1.5 |
22Ω, 24h/d, 0.8V |
19h |
| 3.9Ω, 1h/d, 0.9V |
42h |
| 6LR61/9V |
26.5*17.5*48.5 |
9 |
180Ω, 24h/d, 4.8V |
800min |
| 270Ω, 1h/d, 5.4V |
1150min |
Rechargeable alkaline battery cell
| Model |
Diameter |
Height |
Norminal Voltage |
Test condition |
Discharge |
Cycle life Times |
| HR03/AAA |
9.5-10.5 |
43.3-44.5 |
1.5 |
100mA, 24h/d, 0.9V |
900mAh |
50-200 times |
| 300mA, 24h/d, 0.9V |
600mAh |
50-200 times |
| HR6/AA |
13.5-14.5 |
49.2-50.5 |
1.5 |
100mA, 24h/d, 0.9V |
1800mAh |
50-200 times |
| 300mA, 24h/d, 0.9V |
1500mAh |
50-200 times |
Attentions:
1) Batteries should be placed in a cool place before use
2) Please install the battery according to the positive and negative (+/-) polarity instructions of the electronic product.
3) Never mix different brands, different types or old and new batteries
4) Never charge, disassemble, damage or dispose of battery in fire
5) Never connect the positive and negative (+/-) terminals of the same battery
6) Never put unpackaged batteries in your pocket
7) If you do not use electronic products for a long time, please remove the batteries
8) Never swallow batteries
9) Batteries are not toys, please do not let children touch or use them
