Highlight:
A23 alkaline battery 12V
, 23A non-rechargeable battery
, 12Volt custom battery cell
A23 battery 23A 12 V Batteries custom 12Volt alkaline non rechargaeble battery cell
A23 battery 23A 12 V Batteries custom 12Volt alkaline battery cell 12V battery
A23 12V Alkaline Battery 23A 12V Battery 12v alkaline 23A battery with improved zinc-manganese formula and enhanced sealing structure for stable voltage 12V
Mercury Free A23 Akaline Battery 12 Volt Single battery Pack button Non-Rechargable battery pack 12V A23 Akaline Battery
12 Volt Single buton battery Pack 23A 12V batteries including alkaline, lithium, and silver oxide options.
Part number: A23 battery 23A battery
Battery series: button alkaline battery pack
Volt: 12.0
Size (mm): 28 X 10
mAh: 58 mah
Warranty period: 12 months
A23 batteries deliver reliable, high- voltage power for specialized remotes and security systems.
The A23 size battery pack 12V alkaline battery also known as 23AE battery LRV08 alkaline battery MN21 12V battery E23A battery 12V K23A battery
and puts out a solid 12 volts with a 2.3 amp-hour capacity 12 Volt Alkaline Button Top Battery
12v non rechargeable battery 23A alkaline 12V battery data sheet:
| Battery type |
Alkaline battery 12V |
| Part number |
23A |
| Material |
Alkaline-Manganese Dioxide (-) Zn︱KOH︱MnO2(+) |
| Voltage |
12 volt |
| Weight |
8g |
| End-point voltage |
6 volt |
| Battery shape |
Cylindrical alkaline battery |
| Dimension |
10.3*28.5mm |
| Package |
In blister card or In box depends on your needed |
| OEM and ODM |
Welcome |
Cion cell battery pack 12V alkaline battery 23A battery Safety precautions:
Do not charge the battery as this may cause battery leakage and damage to charging equipment;
Insert batteries correctly with regard to the polarities (＋and－) marked on the battery and the equipment;
Do not short circuit, heat, or put the battery into fire;
Do not disassemble the battery as the internal electrolyte will corrode the skin
Do not use both new and used batteries at the same time
Please remove the depleted battery from the appliance to avoid leakage caused by over discharge;
Batteries should be kept out of reach of children to prevent accidental ingestion;
Before installing the battery into the electrical appliance, wipe the cover with alcohol to better utilize and protect the appliance;
Batteries should not come into contact with corrosive substances such as strong acids and alkalis.

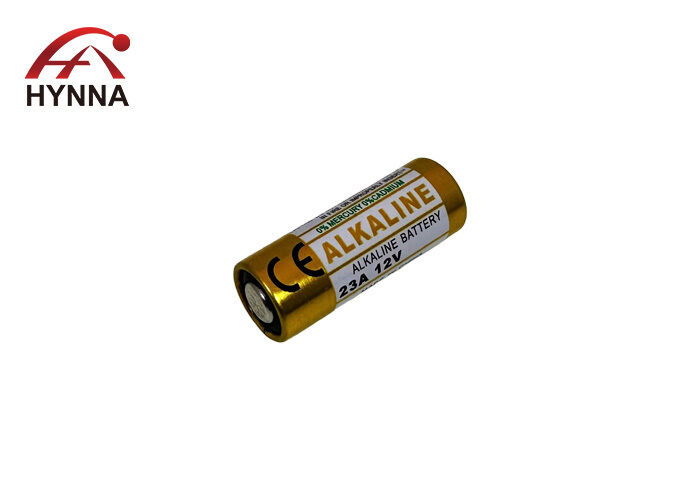

23A alkaline battery A23 12volt battery picture:
12V alkaline battery 23A Discharge performance
| Resistance |
Daily period |
End-point voltage |
Initial |
After 12 months |
| 20kΩ |
24h |
6.0V |
115h |
103.5h |
| 1 kΩ |
24h |
6.0V |
220mins |
175mins |
| 1 kΩ |
1S/4S,24h |
6.0V |
18000Pulses |
17000Pulses |
Hot sale Alkaline batteries from Hynna
Primary alkaline battery cell
| Model |
Diameter mm |
Height mm |
Norminal Voltage V |
Test condition |
Discharge |
| 23A |
9.9-10.2 |
28.1-28.7 |
1.5 |
20KΩ, 24h/d, 7.2V |
98h |
| 27A |
7.65-7.85 |
27.7-28.3 |
1.5 |
20KΩ, 24h/d, 7.2V |
36h |
| LR03/AAA/七 |
9.5-10.5 |
43.3-44.5 |
1.5 |
10Ω, 24h/d, 0.9V |
8h |
| 3.9Ω, 24h/d, 0.9V |
2.5h |
| LR6/AA/五 |
13.5-14.5 |
49.2-50.5 |
1.5 |
10Ω, 24h/d, 0.9V |
19.1h |
| 3.9Ω, 24h/d, 0.9V |
6.4h |
| LR14/C/二 |
24.9-26.2 |
48.6-50.0 |
1.5 |
3.9Ω, 24h/d, 0.8V |
20h |
| 6.8Ω, 1h/d, 0.9V |
39h |
| LR20/D |
32.3-34.2 |
59.5-61.5 |
1.5 |
22Ω, 24h/d, 0.8V |
19h |
| 3.9Ω, 1h/d, 0.9V |
42h |
| 6LR61/9V |
26.5*17.5*48.5 |
9 |
180Ω, 24h/d, 4.8V |
800min |
| 270Ω, 1h/d, 5.4V |
1150min |
Rechargeable alkaline battery cell
| Model |
Diameter |
Height |
Norminal Voltage |
Test condition |
Discharge |
Cycle life Times |
| HR03/AAA/7号 |
9.5-10.5 |
43.3-44.5 |
1.5 |
100mA, 24h/d, 0.9V |
900mAh |
50-200 times |
| 300mA, 24h/d, 0.9V |
600mAh |
50-200 times |
| HR6/AA/5号 |
13.5-14.5 |
49.2-50.5 |
1.5 |
100mA, 24h/d, 0.9V |
1800mAh |
50-200 times |
| 300mA, 24h/d, 0.9V |
1500mAh |
50-200 times |
Attentions:
1) Batteries should be placed in a cool place before use
2) Please install the battery according to the positive and negative (+/-) polarity instructions of the electronic product.
3) Never mix different brands, different types or old and new batteries
4) Never charge, disassemble, damage or dispose of battery in fire
5) Never connect the positive and negative (+/-) terminals of the same battery
6) Never put unpackaged batteries in your pocket
7) If you do not use electronic products for a long time, please remove the batteries
8) Never swallow batteries
9) Batteries are not toys, please do not let children touch or use them
