Highlight:
23A Alkaline Dry Cell Battery
, Alkaline Dry Cell Battery Pack
, 12Volt Alkaline Dry Cell Battery
A23 23AE 23A Alkaline Dry Cell Battery Pack 12Volt Manufactory Hynna Battery
A23 23AE 23A alkaline dry cell battery pack 12Volt manufactory Hynna battery
23A 12V Alkaline Battery Compatible with E23A EL12 GP23A L1028 LRV08 dry cell battery Alkaline battery series 12Volt battery Pack factory
A23 Batteries 12V miniature alkaline battery is long lasting home battery
Use to power your electronic gadgets, including bluetooth devices, cameras etc.
The A23 battery (also referred to as 23AE, GP23A, V23GA,[1] LRV08,[2] 8LR932,[3] 8LR23, MN21, L1028 or ANSI-1181A)
is a dry battery consisting of eight LR932 cells, with a nominal voltage of 12 V.
12V primary alkaline battery is a common type of disposable battery used in various low-drain electronic devices.
A23 A23 23A 12V MN21 V23GA Battery for Garage Door Openers Ceiling Fan Remotes
High-voltage battery 12V alkaline battery Key Specifications:
Chemistry: Alkaline (zinc-manganese dioxide).
Voltage: Nominal 12V (actual voltage when fresh is ~12.5–13V, dropping to ~9V at end-of-life).
No Rechargeable battery 12volt primary alkaline battery single-use battery 12V cylindrical battery pack
Internal Structure: Usually contains eight 1.5V Alkaline cells stacked in series.
Terminals: Spring-loaded snap connectors (common) or wire leads.
High Voltage Battery Ultra Single Cell 12V alkaline battery Common Names & Codes:
IEC Code: 8LR23 (or 8LR932)
ANSI/NEDA Code: 23A, 23AE
Popular Brands:
Duracell: MN21, 23A
Energizer: A23, E23A, GP23A
Panasonic: 23A
Sony: 8LR23
Alkaline Battery 23A 12V/B5 data sheet:
| Battery type |
Alkaline battery 12V |
| Part number |
23A |
| Material |
Alkaline-Manganese Dioxide (-) Zn︱KOH︱MnO2(+) |
| Voltage |
12 volt |
| Weight |
8g |
| End-point voltage |
6 volt |
| Battery shape |
Cylindrical alkaline battery |
| Dimension |
10.3*28.5mm |
| Package |
In blister card or In box depends on your needed |
| OEM and ODM |
Welcome |

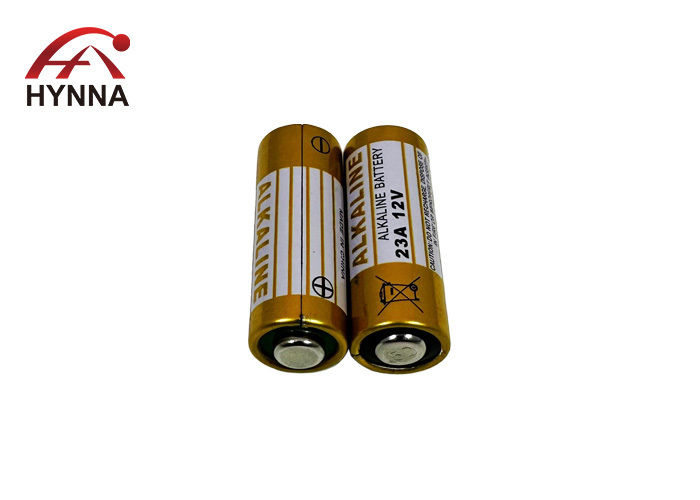

A23 12V Alkaline 23A Batteries 12volt Batteries picture:
A23 12V/12 Volt Alkaline Batteries Discharge performance
| Resistance |
Daily period |
End-point voltage |
Initial |
After 12 months |
| 20kΩ |
24h |
6.0V |
115h |
103.5h |
| 1 kΩ |
24h |
6.0V |
220mins |
175mins |
| 1 kΩ |
1S/4S,24h |
6.0V |
18000Pulses |
17000Pulses |
Hot sale Alkaline batteries from Hynna
Battery For Gate Remote A23 23A 12v Alkaline Battery
| Model |
Diameter mm |
Height mm |
Norminal Voltage V |
Test condition |
Discharge |
| 23A |
9.9-10.2 |
28.1-28.7 |
1.5 |
20KΩ, 24h/d, 7.2V |
98h |
| 27A |
7.65-7.85 |
27.7-28.3 |
1.5 |
20KΩ, 24h/d, 7.2V |
36h |
| LR03/AAA/七 |
9.5-10.5 |
43.3-44.5 |
1.5 |
10Ω, 24h/d, 0.9V |
8h |
| 3.9Ω, 24h/d, 0.9V |
2.5h |
| LR6/AA/五 |
13.5-14.5 |
49.2-50.5 |
1.5 |
10Ω, 24h/d, 0.9V |
19.1h |
| 3.9Ω, 24h/d, 0.9V |
6.4h |
| LR14/C/二 |
24.9-26.2 |
48.6-50.0 |
1.5 |
3.9Ω, 24h/d, 0.8V |
20h |
| 6.8Ω, 1h/d, 0.9V |
39h |
| LR20/D |
32.3-34.2 |
59.5-61.5 |
1.5 |
22Ω, 24h/d, 0.8V |
19h |
| 3.9Ω, 1h/d, 0.9V |
42h |
| 6LR61/9V |
26.5*17.5*48.5 |
9 |
180Ω, 24h/d, 4.8V |
800min |
| 270Ω, 1h/d, 5.4V |
1150min |
Specialty A23 Alkaline 23A Security Batteries
| Model |
Diameter |
Height |
Norminal Voltage |
Test condition |
Discharge |
Cycle life Times |
| HR03/AAA/7号 |
9.5-10.5 |
43.3-44.5 |
1.5 |
100mA, 24h/d, 0.9V |
900mAh |
50-200 times |
| 300mA, 24h/d, 0.9V |
600mAh |
50-200 times |
| HR6/AA/5号 |
13.5-14.5 |
49.2-50.5 |
1.5 |
100mA, 24h/d, 0.9V |
1800mAh |
50-200 times |
| 300mA, 24h/d, 0.9V |
1500mAh |
50-200 times |
23A 12v Cell Alkaline battery L1028 dry Batteries Attentions:
1) Batteries should be placed in a cool place before use
2) Please install the battery according to the positive and negative (+/-) polarity instructions of the electronic product.
3) Never mix different brands, different types or old and new batteries
4) Never charge, disassemble, damage or dispose of battery in fire
5) Never connect the positive and negative (+/-) terminals of the same battery
6) Never put unpackaged batteries in your pocket
7) If you do not use electronic products for a long time, please remove the batteries
8) Never swallow batteries
9) Batteries are not toys, please do not let children touch or use them
