Highlight:
12V A27 Manganese Dioxide Battery
, ODM Manganese Dioxide Battery
, 27A cylindrical Manganese Dioxide Battery
12V A27 Manganese Dioxide Battery 27A Cylindrical Non-rechargeable Battery ODM
A27 Miniature Alkaline battery 12Volt Replacement for 27A, A27BP, G27A, GP27A, L828 dry alkaline battery
Alkaline Battery 12V 27A Cylindrical primary battery 12Volt dry cell battery pack OEM 27A alkaline battery
27A 12V alkaline battery As used in many car alarm key ring remote controls, remote garage door openers, cigarette lighters etc.
Equivalent to GP27A, LR27A.12 volt Class A alkaline batteries ensure longer battery life and extended usage time.
A27 12V miniature alkaline security battery 12 Volt Keyless Entry Battery BATTERY A27 12V ALK MINIALKALINE 12VOLTA27 12V Zero Mercury Alkaline
Voltage 12V
Chemistry Alkaline
Shape Cylindrical (like a small tube)
Dimensions ⌀ 8mm × 28.2mm (larger diameter, slightly shorter)
Capacity ~28 mAh
Typical Uses Key fobs, car alarms, some medical devices
Terminals Both ends (+)
12 Volt A27 disposable battery Pro Tips:
Check your device manual: Always use the specified battery type.
Avoid mixing: Never combine old/new batteries or different types.
Storage: Keep in a cool, dry place to prevent leakage.
In short: If your device requires a 23A, the larger-diameter 27A won’t fit.
Conversely, a 23A will be too loose in a 27A compartment.
Choose based on your device’s specifications!
A27 primary battery L828 battery 12V non rechargeable battery Electrical characteristics
| Items |
Off-load voltage |
On-load voltage |
Acceptance criteria |
Initial
(Within 30 days after delivery) |
≥12.4V |
≥11.5V |
MIL-STD105E,ClassⅡ,
Double Sampling ,AQL=0.4 |
| After 12 months |
≥12.2V |
≥11.0V |
Safety precautions for A27 battery V27GA primary battery E27A battery 12V alkaline battery
Do not charge the battery as this may cause battery leakage and damage to charging equipment;
Insert batteries correctly with regard to the polarities (＋and－) marked on the battery and the equipment;
Do not short circuit, heat, or put the battery into fire;
Do not disassemble the battery as the internal electrolyte will corrode the skin
Do not use both new and used batteries at the same time
Please remove the depleted battery from the appliance to avoid leakage caused by over discharge;
Batteries should be kept out of reach of children to prevent accidental ingestion;
Before installing the battery into the electrical appliance, wipe the cover with alcohol to better utilize and protect the appliance;
Batteries should not come into contact with corrosive substances such as strong acids and alkalis.
Data sheet for Alkaline Button Battery A27 12 Volt battery OEM factory
| Battery type |
Alkaline battery 12Volt A27 primary battery |
| Part number |
27A Alkaline 27A |
| Material |
Alkaline-Manganese Dioxide (-) Zn︱KOH︱MnO2(+) |
| Voltage |
12 volt |
| Weight |
4.4g |
| End-point voltage |
6 volt |
| Battery shape |
Cylindrical alkaline battery |
| Dimension |
7.7*27.8mm |
| Package |
In blister card or In box depends on your needed |
| OEM and ODM |
Welcome |

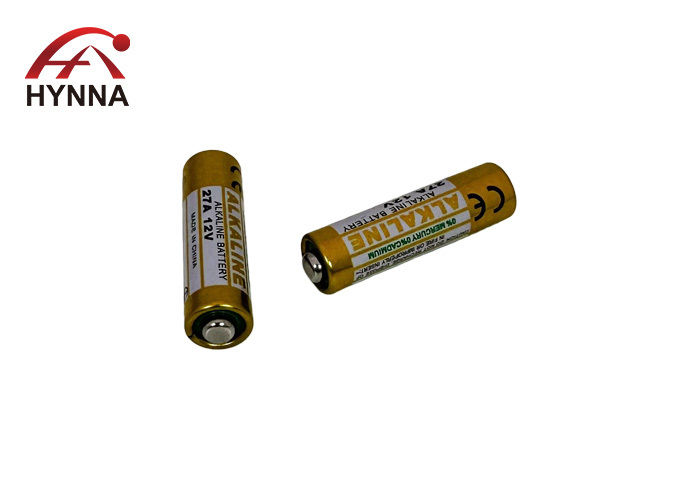

A27/LR27 12V Alkaline Battery 12volt battery picture:
A27 Battery Alkaline 12v 27A G27 12volt batteries Safety characteristics
| Test item |
Conditions |
Period |
Requirements |
Acceptance standard |
Over-discharge
Characteristics |
Temp.:20±2℃
Load:20KΩ |
Continuous
discharge 48
hours after
discharge
termination |
No leakage or
explosion by eye |
N=9, Ac=0, Re=1 |
Hot sale Alkaline batteries from Hynna battery factory
A27 SINGLE USE BATTERY Cell size A27 Type Miniature Alkaline Volt 12
Replacement for 27A A27BP G27A GP27A L828 MN27 A27S and others
| Model |
Diameter mm |
Height mm |
Norminal Voltage V |
Test condition |
Discharge |
| 23A |
9.9-10.2 |
28.1-28.7 |
1.5 |
20KΩ, 24h/d, 7.2V |
98h |
| 27A |
7.65-7.85 |
27.7-28.3 |
1.5 |
20KΩ, 24h/d, 7.2V |
36h |
| LR03/AAA/七 |
9.5-10.5 |
43.3-44.5 |
1.5 |
10Ω, 24h/d, 0.9V |
8h |
| 3.9Ω, 24h/d, 0.9V |
2.5h |
| LR6/AA/五 |
13.5-14.5 |
49.2-50.5 |
1.5 |
10Ω, 24h/d, 0.9V |
19.1h |
| 3.9Ω, 24h/d, 0.9V |
6.4h |
| LR14/C/二 |
24.9-26.2 |
48.6-50.0 |
1.5 |
3.9Ω, 24h/d, 0.8V |
20h |
| 6.8Ω, 1h/d, 0.9V |
39h |
| LR20/D |
32.3-34.2 |
59.5-61.5 |
1.5 |
22Ω, 24h/d, 0.8V |
19h |
| 3.9Ω, 1h/d, 0.9V |
42h |
| 6LR61/9V |
26.5*17.5*48.5 |
9 |
180Ω, 24h/d, 4.8V |
800min |
| 270Ω, 1h/d, 5.4V |
1150min |
Rechargeable alkaline battery A27 Alkaline Battery 12 Volt - A27-BP1 91 EGP 96 EGP dry cell battery
| Model |
Diameter |
Height |
Norminal Voltage |
Test condition |
Discharge |
Cycle life Times |
| HR03/AAA/7号 |
9.5-10.5 |
43.3-44.5 |
1.5 |
100mA, 24h/d, 0.9V |
900mAh |
50-200 times |
| 300mA, 24h/d, 0.9V |
600mAh |
50-200 times |
| HR6/AA/5号 |
13.5-14.5 |
49.2-50.5 |
1.5 |
100mA, 24h/d, 0.9V |
1800mAh |
50-200 times |
| 300mA, 24h/d, 0.9V |
1500mAh |
50-200 times |
Small size alkaline battery A27 12V battery 27A Attentions:
1) Batteries should be placed in a cool place before use
2) Please install the battery according to the positive and negative (+/-) polarity instructions of the electronic product.
3) Never mix different brands, different types or old and new batteries
4) Never charge, disassemble, damage or dispose of battery in fire
5) Never connect the positive and negative (+/-) terminals of the same battery
6) Never put unpackaged batteries in your pocket
7) If you do not use electronic products for a long time, please remove the batteries
8) Never swallow batteries
9) Batteries are not toys, please do not let children touch or use them
