Highlight:
12Volt A23 Alkaline Battery
, a23 23a 12v alkaline battery
, 23A Dry Alkaline Battery
LR932 Battery Pack 12Volt A23 Alkaline Battery 23A Dry Alkaline Battery Factory
LR932 battery pack 12Volt A23 alkaline battery 23A dry alkaline battery factory
21/23 12V Alkaline Battery Pack A23, A23E, MN21, LRV08, V23GA 12 Volt Battery, Long-Lasting for Key Fobs, Car Alarms,
GPS Trackers, and More home application.
Alkaline Battery 23A / A23 High Voltage Battery Ultra Single Cell 12V 38mAh 23A 12V/B5 Alkaline Battery
23A is essentially 8 coin cell batteries in series. It is 55maH capacity and 12 volt votage Cylindrical alkaline battery pack.
23AE Ultra Alkaline Battery High Voltage 12V non rechargeable abattery A23.
The main differences between 23A and 27A batteries are their physical dimensions, capacity (mAh),
and typical applications, despite both being 12-volt alkaline batteries.
A23 A23 23A 12V MN21 V23GA Battery Feature 23A Battery
Voltage 12V
Chemistry Alkaline
Shape Cylindrical (like a small tube)
Dimensions ⌀ 10mm × 28.5mm (smaller diameter, taller)
Capacity ~55 mAh
Typical Uses Garage door openers, security devices, some remotes
Terminals Both ends (+)
12V 23A High Capacity Alkaline Battery data sheet:
| Battery type |
Alkaline battery 12V |
| Part number |
23A |
| Material |
Alkaline-Manganese Dioxide (-) Zn︱KOH︱MnO2(+) |
| Voltage |
12 volt |
| Weight |
8g |
| End-point voltage |
6 volt |
| Battery shape |
Cylindrical alkaline battery |
| Dimension |
10.3*28.5mm |
| Package |
In blister card or In box depends on your needed |
| OEM and ODM |
Welcome |

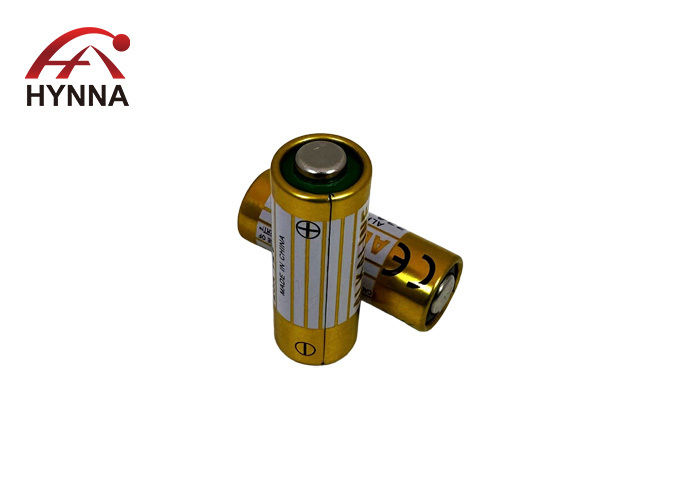

23A Batteries AG3/LR41/392/736 Batteries picture:
ALKALINE BATTERY A23 12V disposable battery Discharge performance
| Resistance |
Daily period |
End-point voltage |
Initial |
After 12 months |
| 20kΩ |
24h |
6.0V |
115h |
103.5h |
| 1 kΩ |
24h |
6.0V |
220mins |
175mins |
| 1 kΩ |
1S/4S,24h |
6.0V |
18000Pulses |
17000Pulses |
Hot sale Alkaline batteries from Hynna
Primary Small Battery 23A 12V 21 23 A23 E23A MN21 MS21 V23GA L1028 Alkaline Dry cell battery pack
| Model |
Diameter mm |
Height mm |
Norminal Voltage V |
Test condition |
Discharge |
| 23A |
9.9-10.2 |
28.1-28.7 |
1.5 |
20KΩ, 24h/d, 7.2V |
98h |
| 27A |
7.65-7.85 |
27.7-28.3 |
1.5 |
20KΩ, 24h/d, 7.2V |
36h |
| LR03/AAA/七 |
9.5-10.5 |
43.3-44.5 |
1.5 |
10Ω, 24h/d, 0.9V |
8h |
| 3.9Ω, 24h/d, 0.9V |
2.5h |
| LR6/AA/五 |
13.5-14.5 |
49.2-50.5 |
1.5 |
10Ω, 24h/d, 0.9V |
19.1h |
| 3.9Ω, 24h/d, 0.9V |
6.4h |
| LR14/C/二 |
24.9-26.2 |
48.6-50.0 |
1.5 |
3.9Ω, 24h/d, 0.8V |
20h |
| 6.8Ω, 1h/d, 0.9V |
39h |
| LR20/D |
32.3-34.2 |
59.5-61.5 |
1.5 |
22Ω, 24h/d, 0.8V |
19h |
| 3.9Ω, 1h/d, 0.9V |
42h |
| 6LR61/9V |
26.5*17.5*48.5 |
9 |
180Ω, 24h/d, 4.8V |
800min |
| 270Ω, 1h/d, 5.4V |
1150min |
LR932 cion cell battery pack 12V Alkalinel 23A Rechargeable alkaline A23 battery
| Model |
Diameter |
Height |
Norminal Voltage |
Test condition |
Discharge |
Cycle life Times |
| HR03/AAA/7号 |
9.5-10.5 |
43.3-44.5 |
1.5 |
100mA, 24h/d, 0.9V |
900mAh |
50-200 times |
| 300mA, 24h/d, 0.9V |
600mAh |
50-200 times |
| HR6/AA/5号 |
13.5-14.5 |
49.2-50.5 |
1.5 |
100mA, 24h/d, 0.9V |
1800mAh |
50-200 times |
| 300mA, 24h/d, 0.9V |
1500mAh |
50-200 times |
mini 12 volts battery Alkaline 23A battery Attentions:
1) Batteries should be placed in a cool place before use
2) Please install the battery according to the positive and negative (+/-) polarity instructions of the electronic product.
3) Never mix different brands, different types or old and new batteries
4) Never charge, disassemble, damage or dispose of battery in fire
5) Never connect the positive and negative (+/-) terminals of the same battery
6) Never put unpackaged batteries in your pocket
7) If you do not use electronic products for a long time, please remove the batteries
8) Never swallow batteries
9) Batteries are not toys, please do not let children touch or use them
