Highlight:
a23 12v alkaline battery
, 12volt Alkaline Button Battery
, Miniature Alkaline Specialty battery
A23 12V Miniature Alkaline Specialty Battery 12volt Alkaline Button Battery Pack 23A
A23 12V Miniature Alkaline Specialty Battery 12volt alkaline button battery pack 23A button cell Akaline battery pack
23A small alkaline battery pack 12V cylindrical alkaline battery 23A 12 volt battery rated at a nominal capacity of 55mAh.
23A A23 12V Alkaline Battery Measuring just 10.22mm in diameter and 28.5mm in height.
12V Battery 23AE 23A Shelf Life:
Typically has a long shelf life (5-10 years) due to the alkaline chemistry and low self-discharge rate when not in use.
The 23A 12V battery 23A button cell battery pack 12V A23 alkaline battery delivering 12 volts through eight internal cells.
It's easily identified by its dual spring terminals (both positive) and metal casing (negative).
It's designed for low-power, compact devices like remote controls and doorbells, offering long shelf life but limited capacity and runtime.
Always check your device's manual to confirm it requires a 23A battery.
MN21/23 Alkaline Battery Common Uses:
Small remote controls (garage door openers, car alarm/keyless entry fobs, some home automation remotes).
Wireless doorbells and chimes.
LED keychain lights / novelty lights.
Some compact electronic toys.
Active RFID tags.
Devices requiring 12V but very low power consumption and compact size.
23A 12V Alkaline Battery Alternative Names:
A23
23A
V23GA
8LR932 (Refers to the 8 internal cells)
8LR23
MN21
L1028
GP23A
E23A
KD23A
XF23
Battery 23A, A23, Mn21, Vr22, L1028 Ultra Alkaline 12V battery data sheet:
| Battery type |
Alkaline battery 12V |
| Part number |
23A |
| Material |
Alkaline-Manganese Dioxide (-) Zn︱KOH︱MnO2(+) |
| Voltage |
12 volt |
| Weight |
8g |
| End-point voltage |
6 volt |
| Battery shape |
Cylindrical alkaline battery |
| Dimension |
10.3*28.5mm |
| Package |
In blister card or In box depends on your needed |
| OEM and ODM |
Welcome |

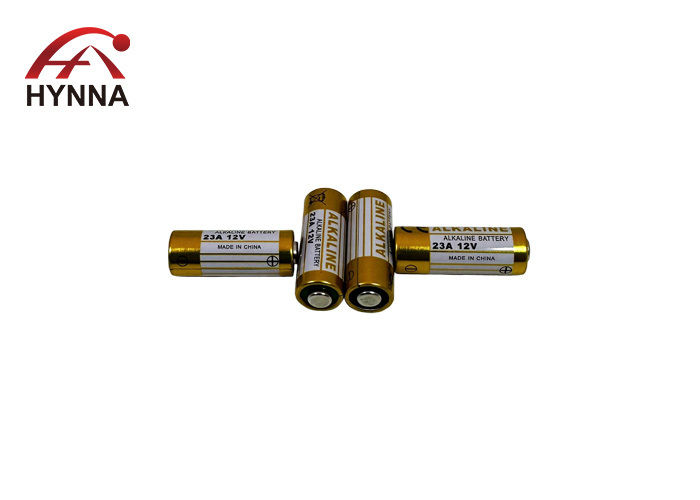

DC Alkaline Battery A23 12V picture:
Discharge performance for A23 12V DC Alkaline Battery
| Resistance |
Daily period |
End-point voltage |
Initial |
After 12 months |
| 20kΩ |
24h |
6.0V |
115h |
103.5h |
| 1 kΩ |
24h |
6.0V |
220mins |
175mins |
| 1 kΩ |
1S/4S,24h |
6.0V |
18000Pulses |
17000Pulses |
Hot sale Alkaline batteries from Hynna
12V 23A Super Alkaline Dry Battery
| Model |
Diameter mm |
Height mm |
Norminal Voltage V |
Test condition |
Discharge |
| 23A |
9.9-10.2 |
28.1-28.7 |
1.5 |
20KΩ, 24h/d, 7.2V |
98h |
| 27A |
7.65-7.85 |
27.7-28.3 |
1.5 |
20KΩ, 24h/d, 7.2V |
36h |
| LR03/AAA/七 |
9.5-10.5 |
43.3-44.5 |
1.5 |
10Ω, 24h/d, 0.9V |
8h |
| 3.9Ω, 24h/d, 0.9V |
2.5h |
| LR6/AA/五 |
13.5-14.5 |
49.2-50.5 |
1.5 |
10Ω, 24h/d, 0.9V |
19.1h |
| 3.9Ω, 24h/d, 0.9V |
6.4h |
| LR14/C/二 |
24.9-26.2 |
48.6-50.0 |
1.5 |
3.9Ω, 24h/d, 0.8V |
20h |
| 6.8Ω, 1h/d, 0.9V |
39h |
| LR20/D |
32.3-34.2 |
59.5-61.5 |
1.5 |
22Ω, 24h/d, 0.8V |
19h |
| 3.9Ω, 1h/d, 0.9V |
42h |
| 6LR61/9V |
26.5*17.5*48.5 |
9 |
180Ω, 24h/d, 4.8V |
800min |
| 270Ω, 1h/d, 5.4V |
1150min |
Alkaline Battery 12v 23a Battery 12v 23a 12 V 21 battery alkaline battery hr3
| Model |
Diameter |
Height |
Norminal Voltage |
Test condition |
Discharge |
Cycle life Times |
| HR03/AAA/7号 |
9.5-10.5 |
43.3-44.5 |
1.5 |
100mA, 24h/d, 0.9V |
900mAh |
50-200 times |
| 300mA, 24h/d, 0.9V |
600mAh |
50-200 times |
| HR6/AA/5号 |
13.5-14.5 |
49.2-50.5 |
1.5 |
100mA, 24h/d, 0.9V |
1800mAh |
50-200 times |
| 300mA, 24h/d, 0.9V |
1500mAh |
50-200 times |
23A A23 12v button battery pack Attentions:
1) Batteries should be placed in a cool place before use
2) Please install the battery according to the positive and negative (+/-) polarity instructions of the electronic product.
3) Never mix different brands, different types or old and new batteries
4) Never charge, disassemble, damage or dispose of battery in fire
5) Never connect the positive and negative (+/-) terminals of the same battery
6) Never put unpackaged batteries in your pocket
7) If you do not use electronic products for a long time, please remove the batteries
8) Never swallow batteries
9) Batteries are not toys, please do not let children touch or use them
