LR6 Alkaline Battery
, SIZE AA LR6 battery
, dry cell Alkaline Battery
Alkaline Battery SIZE AA LR6 Battery AA Size Dry Cell Battery
Alkaline Battery SIZE AA LR6 battery AA size dry cell battery Alkaline battery LR6 AA 1.5V UM3 LR6 aa battery
1.5V battery AM3/LR6 alkaline battery AA battery double-A battery is a standard size single cell cylindrical dry battery.
Provides the amount of energy needed for a specific device;
ideal for game controllers, toys, flashlights, digital cameras, watches and more.
Battery without mercury or cadmium.
Long-life with much longer lifespan than conventional batteries.
Chemical System: Alkaline (Zn/MnO2) Zinc-Manganese Dioxide
IEC Name: LR6
ANSI/NEDA: 15A (AA)
Average Weight: 22.5+-5g
Dimension(∅ x H): 14.0±0.5 x 50.0 mm
Nominal Voltage: 1.5 V
Method of sampling : ISO2859 level II single sampling normal inspection.
Voltmeter : Digital Voltmeter with the precision of 1mV
(internal resistance not less than 1 Megohm)
Test temperature : 20 ± 2°C
Alkaline batteries Advantage:
Long-lasting and stable power output
0% Mercury, eco-friendly, reducing potential pollution
High-density structure, providing ultra-high performance and long-lasting power
Suitable for medium to high power-consuming electronic devices
Up to 5 year Shelf Life
Data sheet for AA LR6 batteries
| Model |
LR6 AA |
| Diameter |
13.5-14.5 |
| Height |
49.2-50.5 |
| Norminal voltage |
1.5 volt
|
| Test condition/discharge time |
10Ω, 24h/d, 0.9V / 19.1H |
| 3.9Ω, 24h/d, 0.9V / 6.4H |
| Storage time |
more than 5 years |
| LOGO |
OEM |
| Package |
Welcome OEM customer logo too |
| Battery pack |
any combinations welcome customized |
LR6 lithium battery

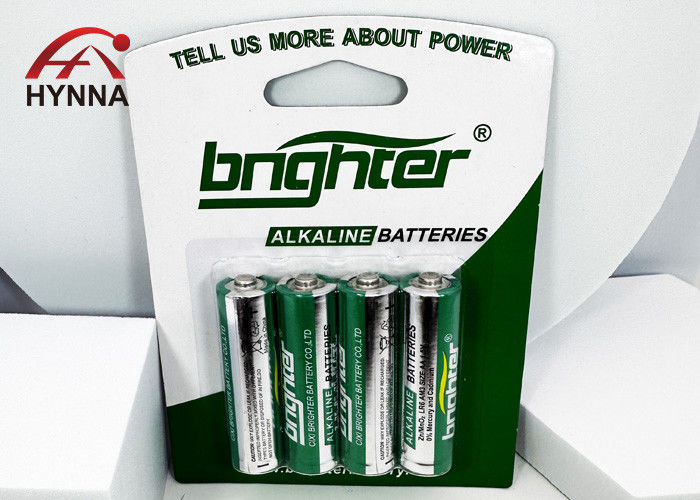

Alkaline battery LR06 batteires packing
| Type |
Blister packing |
Shrink packing |
| Pack |
Inner box |
Carton |
Measurement |
G/W |
Pack |
Inner box |
Carton |
Measurement |
G/W |
| LR6/ AA/ 1.5v |
4B/card |
20 cards |
160 cards |
391*303*193mm |
16.6 kgs |
4S/shrink |
40 pcs |
720 pcs |
311*198*182 mm |
17.2 kgs |
| 2S/shrink |
40 pcs |
720 pcs |
311*198*182 mm |
17.2 kgs |
Continuous discharge
Hot sale Alkaline batteries from Hynna
Primary Alkaline battery cell
| Model |
Diameter mm |
Height mm |
Norminal Voltage V |
Test condition |
Discharge |
| 23A |
9.9-10.2 |
28.1-28.7 |
1.5 |
20KΩ, 24h/d, 7.2V |
98h |
| 27A |
7.65-7.85 |
27.7-28.3 |
1.5 |
20KΩ, 24h/d, 7.2V |
36h |
| LR03/AAA/七号 |
9.5-10.5 |
43.3-44.5 |
1.5 |
10Ω, 24h/d, 0.9V |
8h |
| 3.9Ω, 24h/d, 0.9V |
2.5h |
| LR6/AA/五号 |
13.5-14.5 |
49.2-50.5 |
1.5 |
10Ω, 24h/d, 0.9V |
19.1h |
| 3.9Ω, 24h/d, 0.9V |
6.4h |
| LR14/C/二号 |
24.9-26.2 |
48.6-50.0 |
1.5 |
3.9Ω, 24h/d, 0.8V |
20h |
| 6.8Ω, 1h/d, 0.9V |
39h |
| LR20/D/大号 |
32.3-34.2 |
59.5-61.5 |
1.5 |
22Ω, 24h/d, 0.8V |
19h |
| 3.9Ω, 1h/d, 0.9V |
42h |
| 6LR61/9V |
26.5*17.5*48.5 |
9 |
180Ω, 24h/d, 4.8V |
800min |
| 270Ω, 1h/d, 5.4V |
1150min |
Rechargeable Alkaline battery
| Model |
Diameter |
Height |
Norminal Voltage |
Test condition |
Discharge |
Cycle life Times |
| HR03/AAA/7号 |
9.5-10.5 |
43.3-44.5 |
1.5 |
100mA, 24h/d, 0.9V |
900mAh |
50-200 times |
| 300mA, 24h/d, 0.9V |
600mAh |
50-200 times |
| HR6/AA/5号 |
13.5-14.5 |
49.2-50.5 |
1.5 |
100mA, 24h/d, 0.9V |
1800mAh |
50-200 times |
| 300mA, 24h/d, 0.9V |
1500mAh |
50-200 times |
FAQ:
Q1: How do we place an order?
A1: Please kindly send us an email for the specifed item, model and quantity.
Q2: How do we make the payment?
A2: We accept TT, LC, credit card and online order, Please do only pay to the official account.
Q3: What's the delivery time?
A3: For standard Jacket Battery, the delivery time is normally 3-7 working days after payment.
For Other Battery, the delivery time is about 20 working days after payment.
Q4: Is it the battery belongs to dangerous goods?
A4: No, it is non-dangerous goods, we have IEC & MSDS documents for identification.
