Highlight:
9v Alkaline Manganese Dioxide Battery
, 6LR61 Alkaline Battery
, 9v Alkaline Battery

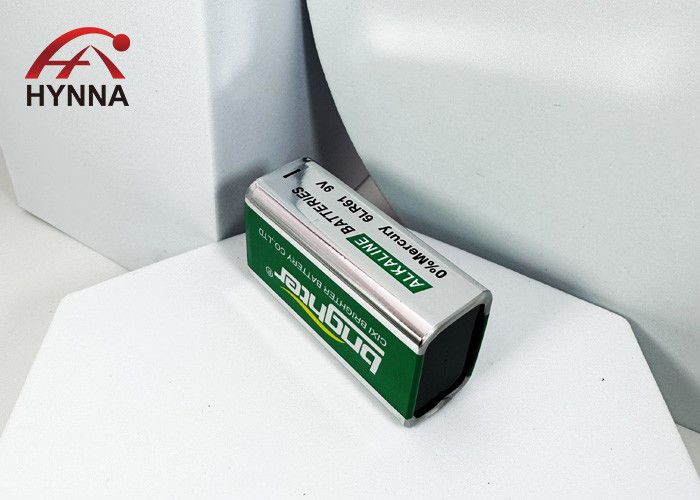

9v Alkaline Battery 6LR61 Alkaline-Manganese Dioxide Battery
9v alkaline battery 6LR61 Alkaline-Manganese Dioxide Battery
Size 9V 6LR61 Alkaline-Manganese Dioxide Battery.
These high-quality alkaline batteries are designed to provide reliable and long-lasting power for a wide range of devices, from smoke detectors etc
9V battery also called MN1604BKD is a 9V Non-rechargeable Battery features an alkaline technology and snap contact terminals.
The alkaline battery is long lasting, reliable power.
Main Uses: Wireless Microphones, Smoke Detectors, Walkie-Talkies, Gaming Controls, Universal Meters, etc
Equivalent to: LAP6, M9V/SHD, MN1604, L522, 216, 6F22, K9V, BA3090/U, 1604, 1604A, 1604LC, 006PN, AM6F, A1604, 6F22SB, 6LR61, RF22UB, U9VL, U9VLJ, 5522, U9VL-FP, PP3, PP3HP, 006P, 6LF62, 9 VOLT, HP3
USAGE GUIDE (Please refer to lEC60086.5 for detailed safety and storage specifications.
(1) insert batteries correctly with regard to the polarities (“+""-") marked on the battery and theelectrical appliances.
(2) Do not short-circuit, recharge, heat, disassemble the battery, or dispose of in fire.
(3) Do not mix use old batteries with new ones, or mix use batteries of different types, chemistries orbrands.
(4)Exhausted batteries should be immediately removed from the equipment.
(5) Keep the batteries away from small children. Do not let the child remove/replace batterieswithout monitoring from adults.
(6)Storage temperature: 5°C~30°c, and humidity conditions RH: 40%~90%.
Length : 26.5mm
Width : 17.5mm
Height : 48.5mm
Weight : 45.6g
No added mercury or cadmium
Data sheet for battery 9V 6LR61 battery
| Model |
6LR61, 9V |
| Dimensions |
26.5*17.5*48.5 mm |
| Weight |
45g |
| Norminal voltage |
9 volt
|
| Test condition/discharge time |
180Ω, 24h/d, 4.8V / 800min |
| 270Ω, 1h/d, 5.4V / 1150min |
| Storage time |
more than 5 years |
| LOGO |
OEM |
| Package |
Welcome OEM customer logo too |
| Battery pack |
any combinations welcome customized |
9Volt alkaline battery 6LR61 primary battery
| Type |
Diameter mm |
Height mm |
Weight
kg |
Capacity
mah |
Testing condition |
|
| 6LR61/ 9V |
L 24.5~26.5
W15.5~17.5 |
46.5~48.5 |
0.0435 |
500 |
35mA, 24h/d, 20°c,e.v.=5.4V |
|
6LR61 disposable battery 9V packing detail
| Type |
Blister packing |
Shrink packing |
| Pack |
Inner box |
Carton |
Measurement |
G/W |
Pack |
Inner box |
Carton |
Measurement |
G/W |
| 6LR61/ 9V |
1B/card |
30 cards |
240cards |
391*299*237mm |
13.9 kgs |
1S/shrink |
20 pcs |
360 pcs |
291*237*179 mm |
16.9 kgs |
|
STORAGE
(1) Store in cool, dry place before use.
(2) Do not keep batteries at temperature of 55℃ or above.
(3) Do not keep batteries at relative humidity of 85% or above.
Hot sale Alkaline batteries from Hynna
Primary cell 1.5 volt batteries
| Model |
Diameter mm |
Height mm |
Norminal Voltage V |
Test condition |
Discharge |
| 23A |
9.9-10.2 |
28.1-28.7 |
1.5 |
20KΩ, 24h/d, 7.2V |
98h |
| 27A |
7.65-7.85 |
27.7-28.3 |
1.5 |
20KΩ, 24h/d, 7.2V |
36h |
| LR03/AAA/七号 |
9.5-10.5 |
43.3-44.5 |
1.5 |
10Ω, 24h/d, 0.9V |
8h |
| 3.9Ω, 24h/d, 0.9V |
2.5h |
| LR6/AA/五号 |
13.5-14.5 |
49.2-50.5 |
1.5 |
10Ω, 24h/d, 0.9V |
19.1h |
| 3.9Ω, 24h/d, 0.9V |
6.4h |
| LR14/C/二号 |
24.9-26.2 |
48.6-50.0 |
1.5 |
3.9Ω, 24h/d, 0.8V |
20h |
| 6.8Ω, 1h/d, 0.9V |
39h |
| LR20/D/大号 |
32.3-34.2 |
59.5-61.5 |
1.5 |
22Ω, 24h/d, 0.8V |
19h |
| 3.9Ω, 1h/d, 0.9V |
42h |
| 6LR61/9V |
26.5*17.5*48.5 |
9 |
180Ω, 24h/d, 4.8V |
800min |
| 270Ω, 1h/d, 5.4V |
1150min |
Rechargeable Alkaline battery 1.5 volt
| Model |
Diameter |
Height |
Norminal Voltage |
Test condition |
Discharge |
Cycle life Times |
| HR03/AAA/7号 |
9.5-10.5 |
43.3-44.5 |
1.5 |
100mA, 24h/d, 0.9V |
900mAh |
50-200 times |
| 300mA, 24h/d, 0.9V |
600mAh |
50-200 times |
| HR6/AA/5号 |
13.5-14.5 |
49.2-50.5 |
1.5 |
100mA, 24h/d, 0.9V |
1800mAh |
50-200 times |
| 300mA, 24h/d, 0.9V |
1500mAh |
50-200 times |
We have professional teams on R&D, engineers and quality control experts on product development.
There are eleven production lines in our factory, four lines for alkaline battery AA size, three lines for alkaline battery AAA size, two lines for alkaline battery C size, one line for alkaline battery D size and one line for alkaline battery 9V size.
Our monthly production can reach 15 milions. There are 30 sets of welding and ancilary equipment in our packing workshop. Monthly production can reach 3 milions sets. According to customer reguirements, packaging, transportation , it can meet customer needs with their different grades.
