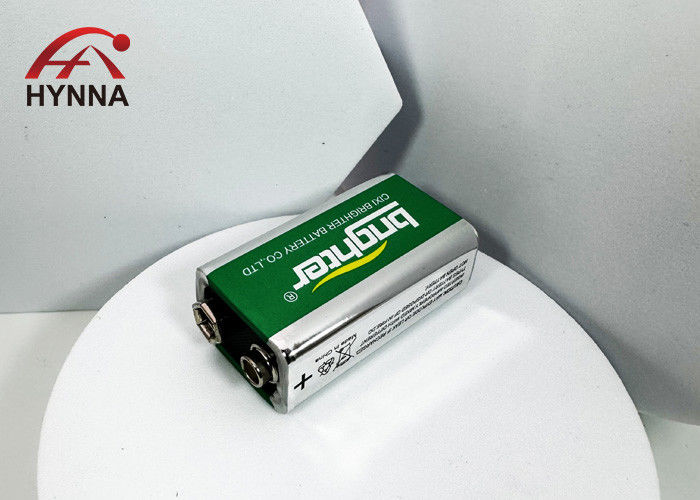

Industrial 6LR61 Alkaline 9V Batteries Multi Purpose 9V 6F22 Alkaline Battery

Product Details

Place of Origin: China

Brand Name: 9V Ultra Alkaline Battery

Certification: CE/REACH/Rohs

Model Number: Premium Alkaline 9 Volt

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: bargain

Packaging Details: Carton/Pallets

Delivery Time: 5-10 working days

Payment Terms: T/T

Supply Ability: 10000000 per month

Get Best Price
Contact Now
Specifications
Highlight:

Industrial Alkaline 9V Batteries

,

6LR61 Alkaline 9V Batteries

,

Industrial 9V 6F22 Alkaline Battery

Size:
9V Battery Alkaline
Part Number:
6LR61
Package:
Shrink Or Blistcard
Dimensions:
26.5*17.5*48.5 Mm
Voltage:
9 Volt
Weight:
45g
Size:
9V Battery Alkaline
Part Number:
6LR61
Package:
Shrink Or Blistcard
Dimensions:
26.5*17.5*48.5 Mm
Voltage:
9 Volt
Weight:
45g
Description
Industrial 6LR61 Alkaline 9V Batteries Multi Purpose 9V 6F22 Alkaline Battery

Alkaline 9V industrial batteries 9 volt multi-purpose alkaline batteries 6LF22 battery OEM square battery 9volt dry cell

PP3 size battery 9 VDC 9V 522 Non Rechargeable Alkaline Batteries 9 volt primary alkaline battery cell
Our alkalinie battery available in AA, AAA, C, D and 9V sizes · Long lasting power guaranteed · 9V batteries are multi-purpose alkaline batteries

9V alkaline battery variant of the 9V battery is also referred to as 6LR61 and 006P batteries.

The 9V battery is an extremely common battery that was first used in transistor radios.

It features a rectangular prism shape that utilizes a pair of snap connectors which are located at the top of the battery.

A wide array of both large and small battery manufacturers produce versions of the 9V battery.

Possible chemistries of primary (non-rechargeable) 9V batteries include Alkaline, Carbon-Zinc (Heavy Duty), Lithium.

The performance and application of the battery can vary greatly between different chemistries, meaning that some chemistiries are better suited for some applications over others.



Copper Top Alkaline Batteries 9V Non Rechargeable battery Used in smoke alarms and in the TV and Film industry.

These long life, long lasting Industrial 9V batteries are also known as 6LR61 EN22 6AM6 MN1604 1604A etc.

These Industrial 9v Alkaline batteries are packed in boxes or blistcard and ideal for professional or industrial users needing 9V PP3 batteries in larger quantities without all the retail packaging.

The alkaline 9v battery with up to 5 year shelf life, this shelf life is less than the shelf life offered on the round cylindrical cells and this is quite normal.

All 9V alkaline batteries welcome OEM and ODM service
Length : 26.5mm
Width : 17.5mm
Height : 48.5mm
Weight : 45.6g
No added mercury or cadmium

Chemistry: Alkaline.

IEC Name: 6LR61.

Size: 9V.

Voltage 9V



Data sheet for Dry cell battery 9V 6LR61 battery



Model 6LR61, 9V
Dimensions 26.5*17.5*48.5 mm
Weight 45g
Norminal voltage

9 volt

Test condition/discharge time 180Ω, 24h/d, 4.8V / 800min
270Ω, 1h/d, 5.4V / 1150min
Storage time more than 5 years
LOGO OEM
Package Welcome OEM customer logo too
Battery pack any combinations welcome customized

Industrial 6LR61 Alkaline 9V Batteries Multi Purpose 9V 6F22 Alkaline Battery 0



9V DRY CELL BATTERY 6lr61 BATTERY 9 volt batteries

Type Diameter mm Height mm Weight
kg
Capacity
mah
Testing condition
6LR61/ 9V  L 24.5~26.5
W15.5~17.5
46.5~48.5 0.0435 500 35mA, 24h/d, 20°c,e.v.=5.4V



9volt primary battery packing standard

Blister packing Shrink packing
Pack Inner box Carton Measurement G/W Pack Inner box Carton Measurement G/W
1B/card 30 cards 240cards 391*299*237mm 13.9 kgs 1S/shrink 20 pcs 360 pcs 291*237*179 mm 16.9 kgs



Hot sale Alkaline batteries from Hynna



Primary cell 1.5 volt batteries

Model Diameter mm Height mm Norminal Voltage V Test condition Discharge
23A 9.9-10.2 28.1-28.7 1.5 20KΩ,   24h/d, 7.2V 98h
27A 7.65-7.85 27.7-28.3 1.5 20KΩ,   24h/d, 7.2V 36h
LR03/AAA/七号 9.5-10.5 43.3-44.5 1.5 10Ω,   24h/d, 0.9V 8h
3.9Ω, 24h/d, 0.9V 2.5h
LR6/AA/五号 13.5-14.5 49.2-50.5 1.5 10Ω,   24h/d, 0.9V 19.1h
3.9Ω, 24h/d, 0.9V 6.4h
LR14/C/二号 24.9-26.2 48.6-50.0 1.5 3.9Ω,   24h/d, 0.8V 20h
6.8Ω, 1h/d, 0.9V 39h
LR20/D/大号 32.3-34.2 59.5-61.5 1.5 22Ω,   24h/d, 0.8V 19h
3.9Ω, 1h/d, 0.9V 42h
6LR61/9V 26.5*17.5*48.5 9 180Ω,   24h/d, 4.8V 800min
270Ω, 1h/d, 5.4V 1150min

Rechargeable Alkaline battery 1.5 volt

Model Diameter Height Norminal Voltage Test condition Discharge Cycle life   Times
HR03/AAA/7号 9.5-10.5 43.3-44.5 1.5 100mA,   24h/d, 0.9V 900mAh 50-200   times
300mA, 24h/d, 0.9V 600mAh 50-200   times
HR6/AA/5号 13.5-14.5 49.2-50.5 1.5 100mA,   24h/d, 0.9V 1800mAh 50-200   times
300mA, 24h/d, 0.9V 1500mAh 50-200   times



STORAGE
(1) Store in cool, dry place before use.
(2) Do not keep batteries at temperature of 55℃ or above.
(3) Do not keep batteries at relative humidity of 85% or above.
