Highlight:

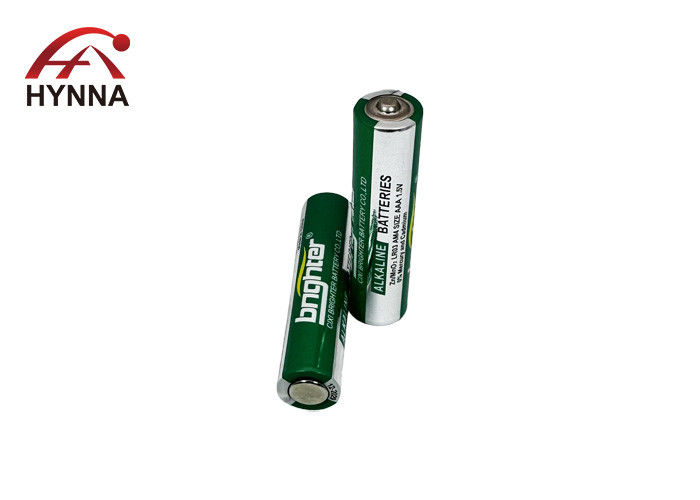

Primary Alkaline AAA Battery
, LR03 Alkaline AAA Battery
, 1.5V Alkaline Battery Non Rechargeable
LR03 Primary Alkaline AAA Battery 1.5V Alkaline Battery Non Rechargeable
LR03 primary battery in size AAA 1.5v Non-Rechargeable Battery 1.5 volt battery AAA Alkaline Batteries 1.5V disposable battery LR03
LR03 AAA 1.5V Alkaline Battery Replaces LR03, 24A, 4003, 4903, 824, AM4, E92, EN92, GP24A, KAAA, MN2400 high performance LR03 AM4 AAA 1.5v alkaline small battery, LR03 AAA Battery 1.5v Ultra Alkaline Series LR03AAA Non-Rechargeable cell.
1.5v Alkaline Battery is a reliable and long-lasting power source designed for everyday electronic devices.
AAA batteries are multi-purpose alkaline batteries ideal for reliably powering everyday devices that require a kick of additional power
These batteries give you the freedom to enjoy the use of your appliances by giving you a product you can rely on.
alkaline batteries are available in size AA, AAA, C, D and 9V.are multi-purpose alkaline batteries to be used in electronics that require reliable power.
lr03 battery designation LRO3 with voltage 1.5V IEClr03 battery size AAA type non rechargeable battery in Alkaline series 1.5 volt battery
Shape and dimension Refer to Drawing
Typical weight 11±0.5g
Shelf life 5 years
LR03 battery diameter 9.5-10.5mm , height 43.3-44.5mm, also called AAA battery
All AAA batteries are used for small electronic devices like TV remote controls, MP3 players, toothbrushes, toys, game controllers, and digital cameras.
Data sheet for AAA batteries LR3
| Model |
LR03 AAA |
| Diameter |
9.5-10.5 |
| Height |
43.3-44.5 |
| Norminal voltage |
1.5 volt
|
| Test condition/discharge time |
10Ω, 24h/d, 0.9V / 8H |
| 3.9Ω, 24h/d, 0.9V/ 2.5H |
| Storage time |
more than 5 years |
| LOGO |
OEM |
| Package |
Welcome OEM customer logo too |
| Battery pack |
any combinations welcome customized |
Dimensions of Battery ( LR03)
| Type |
Diameter mm |
Height mm |
Weight
kg |
Capacity
mah |
Testing condition |
| LR03/ AAA/ 1.5v |
9.5~10.5 |
43.3~44.5 |
0.0113 |
1300 |
10mA, 24h/d, 20°c,e.v.=0.8V |
Alkalaine battery LR03 AAA battery packing detail
| Type |
Blister packing |
Shrink packing |
| Pack |
Inner box |
Carton |
Measurement |
G/W |
Pack |
Inner box |
Carton |
Measurement |
G/W |
| LR03/ AAA/ 1.5v |
4B/card |
30 cards |
240 cards |
395*297*214mm |
13.6 kgs |
4S/shrink |
40 pcs |
1200 pcs |
240*230*161mm |
14.3 kgs |
| 2S/shrink |
40 pcs |
1200 pcs |
240*230*161mm |
14.3 kgs |
Hot sale Alkaline batteries from Hynna
Alkaline Primary battery
| Model |
Diameter mm |
Height mm |
Norminal Voltage V |
Test condition |
Discharge |
| 23A |
9.9-10.2 |
28.1-28.7 |
1.5 |
20KΩ, 24h/d, 7.2V |
98h |
| 27A |
7.65-7.85 |
27.7-28.3 |
1.5 |
20KΩ, 24h/d, 7.2V |
36h |
| LR03/AAA/七号 |
9.5-10.5 |
43.3-44.5 |
1.5 |
10Ω, 24h/d, 0.9V |
8h |
| 3.9Ω, 24h/d, 0.9V |
2.5h |
| LR6/AA/五号 |
13.5-14.5 |
49.2-50.5 |
1.5 |
10Ω, 24h/d, 0.9V |
19.1h |
| 3.9Ω, 24h/d, 0.9V |
6.4h |
| LR14/C/二号 |
24.9-26.2 |
48.6-50.0 |
1.5 |
3.9Ω, 24h/d, 0.8V |
20h |
| 6.8Ω, 1h/d, 0.9V |
39h |
| LR20/D/大号 |
32.3-34.2 |
59.5-61.5 |
1.5 |
22Ω, 24h/d, 0.8V |
19h |
| 3.9Ω, 1h/d, 0.9V |
42h |
| 6LR61/9V |
26.5*17.5*48.5 |
9 |
180Ω, 24h/d, 4.8V |
800min |
| 270Ω, 1h/d, 5.4V |
1150min |
Alkaline Rechargeable battery
| Model |
Diameter |
Height |
Norminal Voltage |
Test condition |
Discharge |
Cycle life Times |
| HR03/AAA/7号 |
9.5-10.5 |
43.3-44.5 |
1.5 |
100mA, 24h/d, 0.9V |
900mAh |
50-200 times |
| 300mA, 24h/d, 0.9V |
600mAh |
50-200 times |
| HR6/AA/5号 |
13.5-14.5 |
49.2-50.5 |
1.5 |
100mA, 24h/d, 0.9V |
1800mAh |
50-200 times |
| 300mA, 24h/d, 0.9V |
1500mAh |
50-200 times |
FAQ:
Q1: How do we place an order?
A1: Please kindly send us an email for the specifed item, model and quantity.
Q2: How do we make the payment?
A2: We accept TT, LC, credit card and online order, Please do only pay to the official account.
Q3: What's the delivery time?
A3: For standard Jacket Battery, the delivery time is normally 3-7 working days after payment.
For Other Battery, the delivery time is about 20 working days after payment.
Q4: Is it the battery belongs to dangerous goods?
A4: No, it is non-dangerous goods, we have IEC & MSDS documents for identification.
