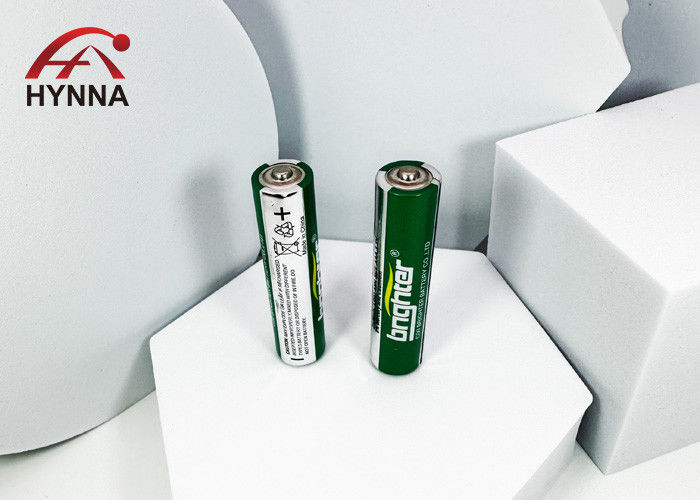

AAA AM4 LR03 1.5V Plus Alkaline LR03 AAA Primary Batteries 1.5 volt battery OEM
Industrial AAA LR03 Batteries Dry cell Batteries Premium AAA LR03
The LR03 batteries are cylindrical—with a diameter of 9.5-10.5 mm and length of 43.3-44.5 mm
They also call AAA batteries, size AAA battery.
LR03 AAA batteries IEC name the two AAA batteries depending on chemical composition
The LR03 is a zinc-manganese dioxide battery (uses potassium hydroxide and zinc chloride as electrolyte)
Pro-Fact: The LR03 is an IEC code for alkaline.
LR03 are AAA batteries (standard-size dry cell batteries used in low-drain portable devices).
LR03 AAA alkaline batteries with almost twice the capacity of R03 batteries.
The output voltage of any AAA battery is 1.5V LR03 cells
Appliactions
All AAA batteries are used for small electronic devices like TV remote controls, MP3 players, toothbrushes, toys, game controllers, and digital cameras.
However, alkaline batteries have a higher capacity, making them the best option for long-term use in devices.
Specification
Part number LR03 battery
Battery type Alkaline battery
Series Dry cell battery
Diameter 9.5-10.5mm
Height 43.3-44.5mm
Voltage 1.5Volt
Discharger time 8H (10Ω, 24h/d, 0.9V) ; 2.5H (3.9Ω, 24h/d, 0.9V)
Each battery has a 5 year lifespan, so it's perfect to keep it at home.
Storage method: Store in a cool and dry place
Main materials: manganese dioxide, graphite, zinc
Data sheet for AAA batteries LR3
| Model |
LR03 AAA |
| Diameter |
9.5-10.5 |
| Height |
43.3-44.5 |
| Norminal voltage |
1.5 volt
|
| Test condition/discharge time |
10Ω, 24h/d, 0.9V / 8H |
| 3.9Ω, 24h/d, 0.9V/ 2.5H |
| Storage time |
more than 5 years |
| LOGO |
OEM |
| Package |
Welcome OEM customer logo too |
| Battery pack |
any combinations welcome customized |
Dimensions of Battery ( LR03)
Alkalaine battery LR03 AAA battery packing detail
| Type |
Blister packing |
Shrink packing |
| Pack |
Inner box |
Carton |
Measurement |
G/W |
Pack |
Inner box |
Carton |
Measurement |
G/W |
| LR03/ AAA/ 1.5v |
4B/card |
30 cards |
240 cards |
395*297*214mm |
13.6 kgs |
4S/shrink |
40 pcs |
1200 pcs |
240*230*161mm |
14.3 kgs |
| 2S/shrink |
40 pcs |
1200 pcs |
240*230*161mm |
14.3 kgs |
Hot sale Alkaline batteries from Hynna
Alkaline Primary battery
| Model |
Diameter mm |
Height mm |
Norminal Voltage V |
Test condition |
Discharge |
| 23A |
9.9-10.2 |
28.1-28.7 |
1.5 |
20KΩ, 24h/d, 7.2V |
98h |
| 27A |
7.65-7.85 |
27.7-28.3 |
1.5 |
20KΩ, 24h/d, 7.2V |
36h |
| LR03/AAA/七号 |
9.5-10.5 |
43.3-44.5 |
1.5 |
10Ω, 24h/d, 0.9V |
8h |
| 3.9Ω, 24h/d, 0.9V |
2.5h |
| LR6/AA/五号 |
13.5-14.5 |
49.2-50.5 |
1.5 |
10Ω, 24h/d, 0.9V |
19.1h |
| 3.9Ω, 24h/d, 0.9V |
6.4h |
| LR14/C/二号 |
24.9-26.2 |
48.6-50.0 |
1.5 |
3.9Ω, 24h/d, 0.8V |
20h |
| 6.8Ω, 1h/d, 0.9V |
39h |
| LR20/D/大号 |
32.3-34.2 |
59.5-61.5 |
1.5 |
22Ω, 24h/d, 0.8V |
19h |
| 3.9Ω, 1h/d, 0.9V |
42h |
| 6LR61/9V |
26.5*17.5*48.5 |
9 |
180Ω, 24h/d, 4.8V |
800min |
| 270Ω, 1h/d, 5.4V |
1150min |
Alkaline Rechargeable battery
| Model |
Diameter |
Height |
Norminal Voltage |
Test condition |
Discharge |
Cycle life Times |
| HR03/AAA/7号 |
9.5-10.5 |
43.3-44.5 |
1.5 |
100mA, 24h/d, 0.9V |
900mAh |
50-200 times |
| 300mA, 24h/d, 0.9V |
600mAh |
50-200 times |
| HR6/AA/5号 |
13.5-14.5 |
49.2-50.5 |
1.5 |
100mA, 24h/d, 0.9V |
1800mAh |
50-200 times |
| 300mA, 24h/d, 0.9V |
1500mAh |
50-200 times |
