Highlight:
9V Super Alkaline Batteries
, 6LR61 Super Alkaline Batteries
, 6LR61 9V DC Alkaline Battery

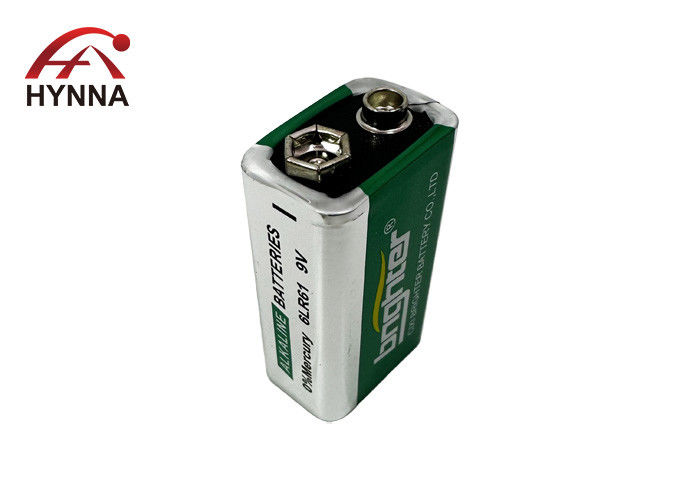

9V 6LR61 Super Alkaline Batteries Non Rechargeable 6LR61 9V DC Alkaline Battery
9V 6LR61 super alkaline batteries 6Lr61 Alkaline Battery 9v Alkaline Battery Dc 9v Battery
Alkaline 9 Volt Battey offers a stable and long-lasting current providing reliable power for high-drain devices such as music players, boombox, gaming devices, etc. Efficient discharge and long-lasting power performance.
Sustain high-drain devices with powerful energy.
Unique anti-leakage seal technology.
Extended storage life for 5 years.
Mercury and cadmium-free.
Battery Details:
Type: Alkaline
IEC Name: 6LR61
Size: 9V
Voltage: 9V
Dimensions: 25.5 x 16.5 x 47.5 mm
Capacity: 500mAh
Length : 26.5mm
Width : 17.5mm
Height : 48.5mm
Weight : 45.6g
No added mercury or cadmium
Main Uses: Wireless Microphones, Smoke Detectors, Walkie-Talkies, Gaming Controls, Universal Meters, etc
Equivalent to: LAP6, M9V/SHD, MN1604, L522, 216, 6F22, K9V, BA3090/U, 1604, 1604A, 1604LC, 006PN, AM6F, A1604, 6F22SB, 6LR61, RF22UB, U9VL, U9VLJ, 5522, U9VL-FP, PP3, PP3HP, 006P, 6LF62, 9 VOLT, HP3
USAGE GUIDE (Please refer to lEC60086.5 for detailed safety and storage specifications.
(1) insert batteries correctly with regard to the polarities (“+""-") marked on the battery and theelectrical appliances.
(2) Do not short-circuit, recharge, heat, disassemble the battery, or dispose of in fire.
(3) Do not mix use old batteries with new ones, or mix use batteries of different types, chemistries orbrands.
(4)Exhausted batteries should be immediately removed from the equipment.
(5) Keep the batteries away from small children. Do not let the child remove/replace batterieswithout monitoring from adults.
(6)Storage temperature: 5°C~30°c, and humidity conditions RH: 40%~90%.
Data sheet for battery 9V 6LR61 battery
| Model |
6LR61, 9V |
| Dimensions |
26.5*17.5*48.5 mm |
| Weight |
45g |
| Norminal voltage |
9 volt
|
| Test condition/discharge time |
180Ω, 24h/d, 4.8V / 800min |
| 270Ω, 1h/d, 5.4V / 1150min |
| Storage time |
more than 5 years |
| LOGO |
OEM |
| Package |
Welcome OEM customer logo too |
| Battery pack |
any combinations welcome customized |
9Volt alkaline battery 6LR61 primary battery
| Type |
Diameter mm |
Height mm |
Weight
kg |
Capacity
mah |
Testing condition |
| 6LR61/ 9V |
L 24.5~26.5
W15.5~17.5 |
46.5~48.5 |
0.0435 |
500 |
35mA, 24h/d, 20°c,e.v.=5.4V |
6LR61 disposable battery 9V packing detail
| Type |
Blister packing |
Shrink packing |
| Pack |
Inner box |
Carton |
Measurement |
G/W |
Pack |
Inner box |
Carton |
Measurement |
G/W |
| 6LR61/ 9V |
1B/card |
30 cards |
240cards |
391*299*237mm |
13.9 kgs |
1S/shrink |
20 pcs |
360 pcs |
291*237*179 mm |
16.9 kgs |
STORAGE
(1) Store in cool, dry place before use.
(2) Do not keep batteries at temperature of 55℃ or above.
(3) Do not keep batteries at relative humidity of 85% or above.
Hot sale Alkaline batteries from Hynna
Primary cell 1.5 volt batteries
| Model |
Diameter mm |
Height mm |
Norminal Voltage V |
Test condition |
Discharge |
| 23A |
9.9-10.2 |
28.1-28.7 |
1.5 |
20KΩ, 24h/d, 7.2V |
98h |
| 27A |
7.65-7.85 |
27.7-28.3 |
1.5 |
20KΩ, 24h/d, 7.2V |
36h |
| LR03/AAA/七号 |
9.5-10.5 |
43.3-44.5 |
1.5 |
10Ω, 24h/d, 0.9V |
8h |
| 3.9Ω, 24h/d, 0.9V |
2.5h |
| LR6/AA/五号 |
13.5-14.5 |
49.2-50.5 |
1.5 |
10Ω, 24h/d, 0.9V |
19.1h |
| 3.9Ω, 24h/d, 0.9V |
6.4h |
| LR14/C/二号 |
24.9-26.2 |
48.6-50.0 |
1.5 |
3.9Ω, 24h/d, 0.8V |
20h |
| 6.8Ω, 1h/d, 0.9V |
39h |
| LR20/D/大号 |
32.3-34.2 |
59.5-61.5 |
1.5 |
22Ω, 24h/d, 0.8V |
19h |
| 3.9Ω, 1h/d, 0.9V |
42h |
| 6LR61/9V |
26.5*17.5*48.5 |
9 |
180Ω, 24h/d, 4.8V |
800min |
| 270Ω, 1h/d, 5.4V |
1150min |
Rechargeable Alkaline battery 1.5 volt
| Model |
Diameter |
Height |
Norminal Voltage |
Test condition |
Discharge |
Cycle life Times |
| HR03/AAA/7号 |
9.5-10.5 |
43.3-44.5 |
1.5 |
100mA, 24h/d, 0.9V |
900mAh |
50-200 times |
| 300mA, 24h/d, 0.9V |
600mAh |
50-200 times |
| HR6/AA/5号 |
13.5-14.5 |
49.2-50.5 |
1.5 |
100mA, 24h/d, 0.9V |
1800mAh |
50-200 times |
| 300mA, 24h/d, 0.9V |
1500mAh |
50-200 times |
We have professional teams on R&D, engineers and quality control experts on product development.
There are eleven production lines in our factory, four lines for alkaline battery AA size, three lines for alkaline battery AAA size, two lines for alkaline battery C size, one line for alkaline battery D size and one line for alkaline battery 9V size.
Our monthly production can reach 15 milions. There are 30 sets of welding and ancilary equipment in our packing workshop. Monthly production can reach 3 milions sets. According to customer reguirements, packaging, transportation , it can meet customer needs with their different grades.
